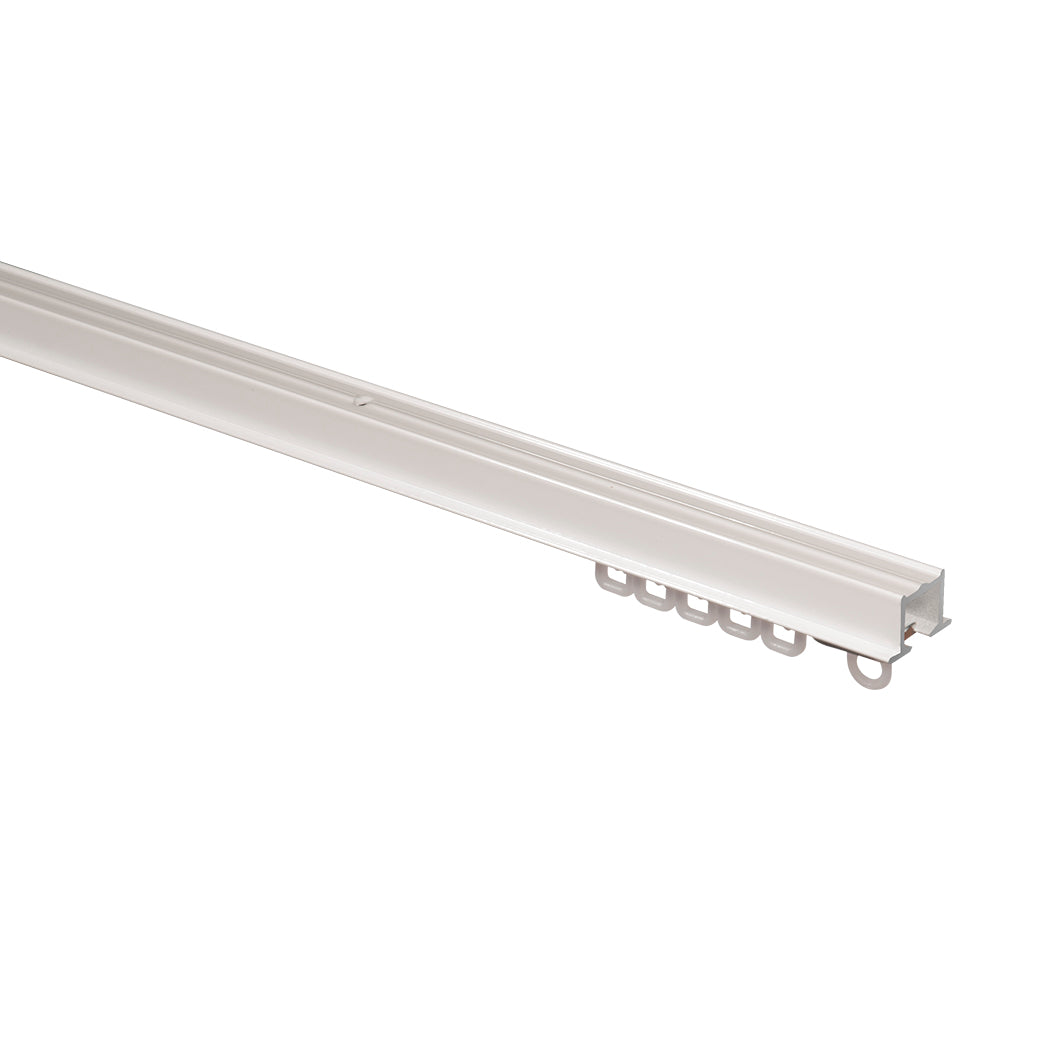

Recess M-Section Uncorded Contract Curtain Track Kit – White

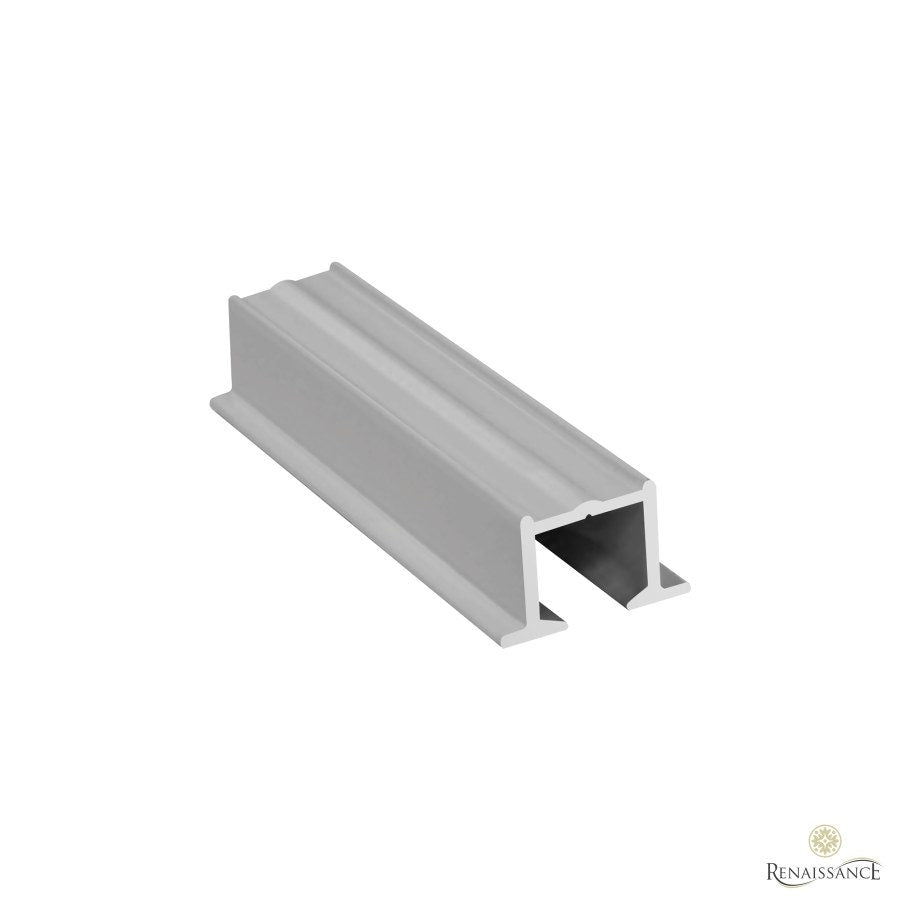

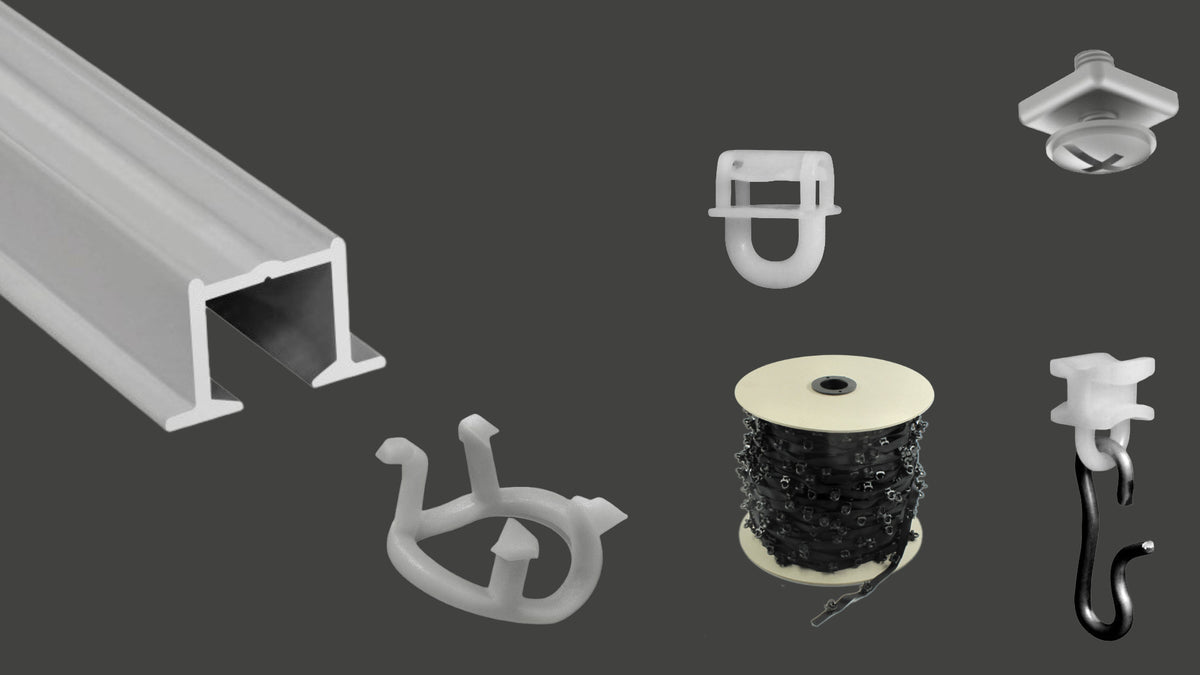

Recess M-Section is Renaissance's concealed contract curtain track – a 20.0mm × 14.0mm M-section aluminium profile designed to sit flush inside a plasterboard ceiling recess so that only the curtain heading is seen. Specify it where the ceiling detail is doing the work: hotel bedrooms with a shadow-gap or recessed ceiling, care home and student accommodation bedrooms, meeting rooms and reception areas where a visible track would interrupt the line of the ceiling. Supplied as a complete kit: pre-cut track, end caps, gliders, twist end stops and fixings. Kits of 3m and over come in two pieces with a joiner.

Why Recess M-Section

• Flush recess fit – the profile screws directly into a plasterboard recess with no brackets, so the track disappears into the ceiling

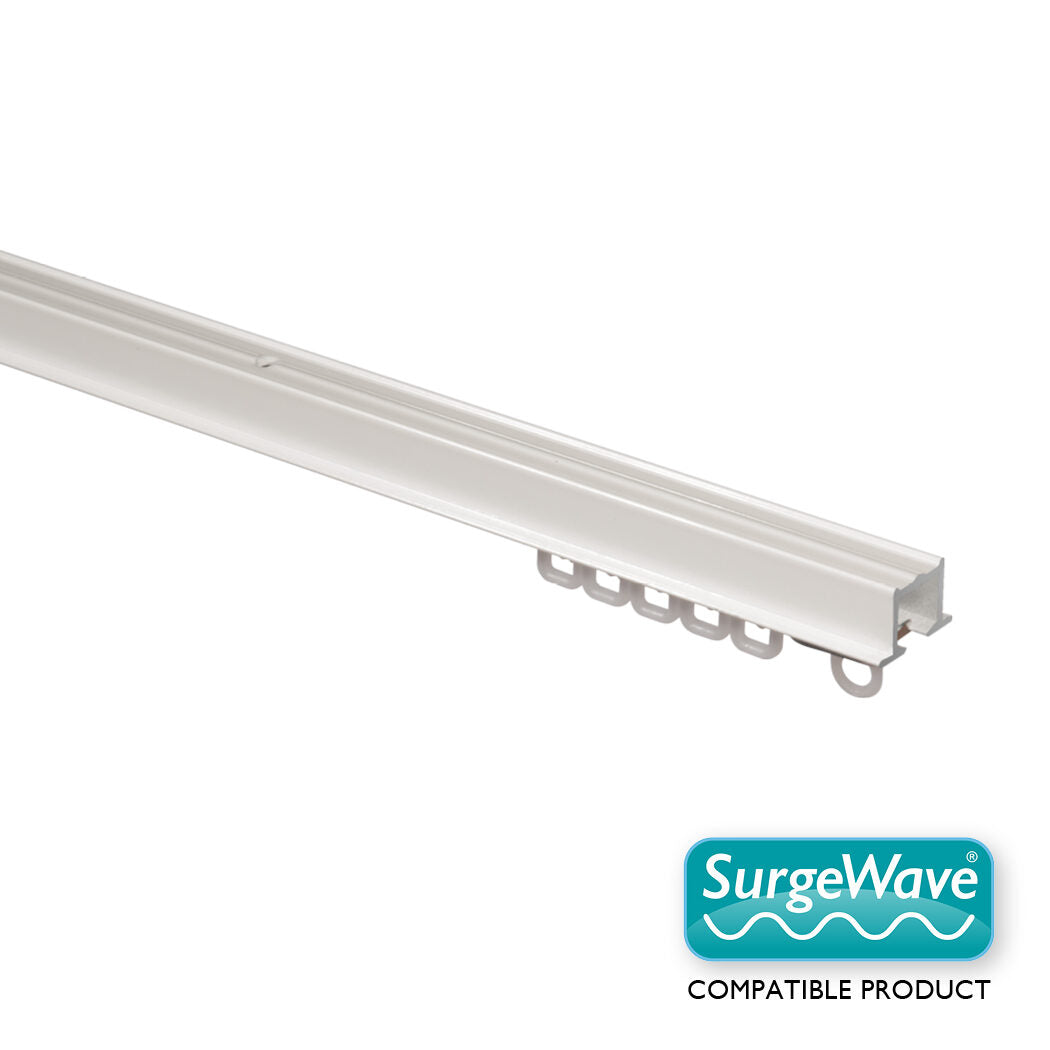

• Medium-duty 6mm groove profile – roller-glider and SurgeWave compatible for pencil pleat, pinch pleat and wave headings
• Pre-drilled option with fixing holes every 15cm for fast, consistent installation – ask us when ordering
• Compatible with side-channel roller-blind guides, so blackout blinds and curtains can share the same recess
• Aluminium alloy 6060/T6, 154 g/m, manufactured in the UK, 5-year guarantee
• Choose Standard or Wave 60mm / 80mm gliders to match your curtain heading
• Cannot be bent – for bays and curves choose a bendable Renaissance profile

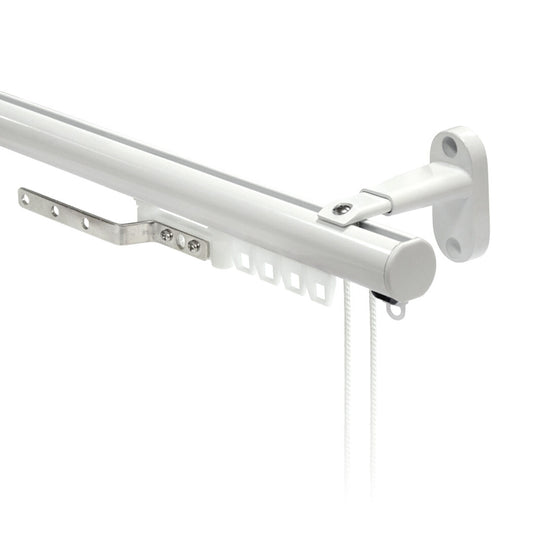

• Also available Corded (child-safe cord operation)

Order curtains and track together

Pair this track with any made-to-measure fire retardant curtain on CreateFR. Pencil pleat and pinch pleat headings run on Standard or Roller gliders; wave curtains need the Wave glider that matches the tape spacing on your curtain order. Hardware is dispatched direct from the manufacturer and arrives separately from your curtains.

Recess fix: the M-section profile fixes directly into a plasterboard ceiling recess with no brackets. Use screws of No.3 gauge (2.5mm shank) with a head no larger than 5.5mm so that the screw head sits inside the profile and does not foul the gliders. A pre-drilled track with holes every 15cm is available on request; otherwise drill the profile at regular centres to suit the substrate.

Ceiling fix: where there is no recess the same profile fixes directly to the ceiling through the track, using the same screw specification.

Long runs and blinds: kits of 3m and over are supplied in two lengths with a joiner – fit the joiner at the join and fix through the track either side of it. The profile is compatible with side-channel roller-blind guides where blinds share the recess.

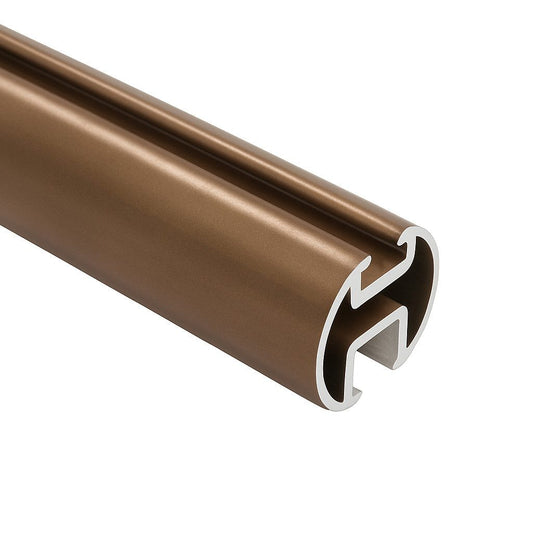

Bending: this track cannot be bent. For bay windows, corners and curved runs choose a bendable Renaissance profile such as Motiva Round.

Care: keep the groove clean and dust-free and re-siliconise periodically to prolong smooth running of the gliders.
