Room divider curtain track, already worked out.

Zone by CreateFR is a range of room divider curtain track kits for offices, schools, care settings and hospitality, in the shapes a specifier already draws. Fixed sizes, a price on the page, a dimensioned drawing beside it, and one kit on site with everything in it.

See the shapesSpecification and drawings

9 shapes, 21 sizes

Plus anything bespoke

Cut, formed and boxed

One set, ready to fit

Suspended or top fix

Chosen per kit

BS 5867 Part 2

FR curtains to suit

Made in the UK

5-year guarantee

5–10 working days

Made to order, white or black

The range

Room divider curtain tracks in nine shapes

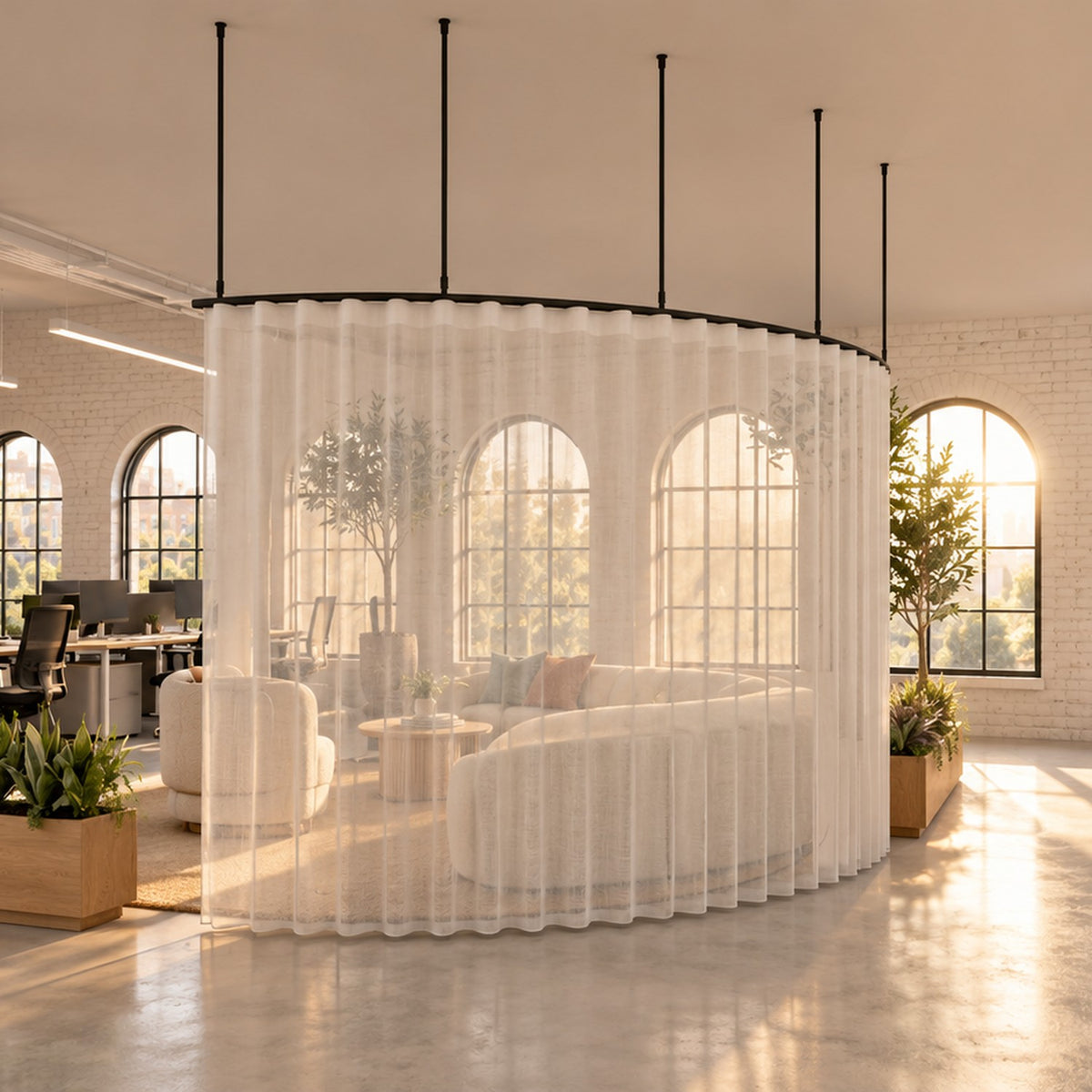

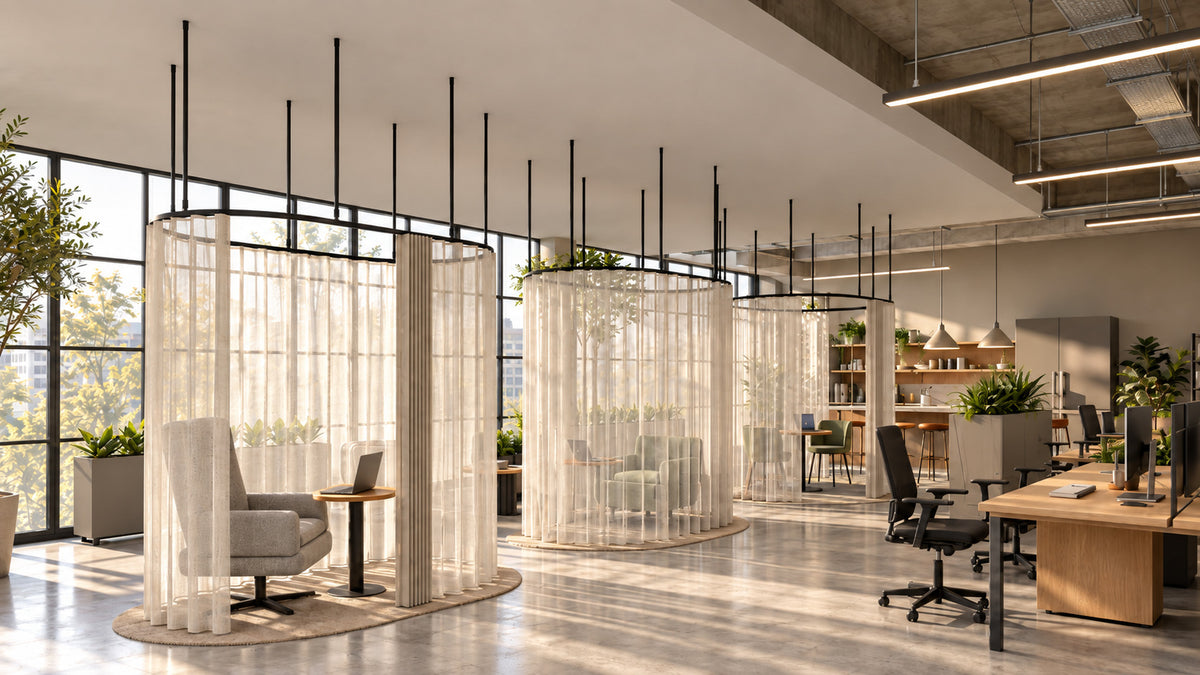

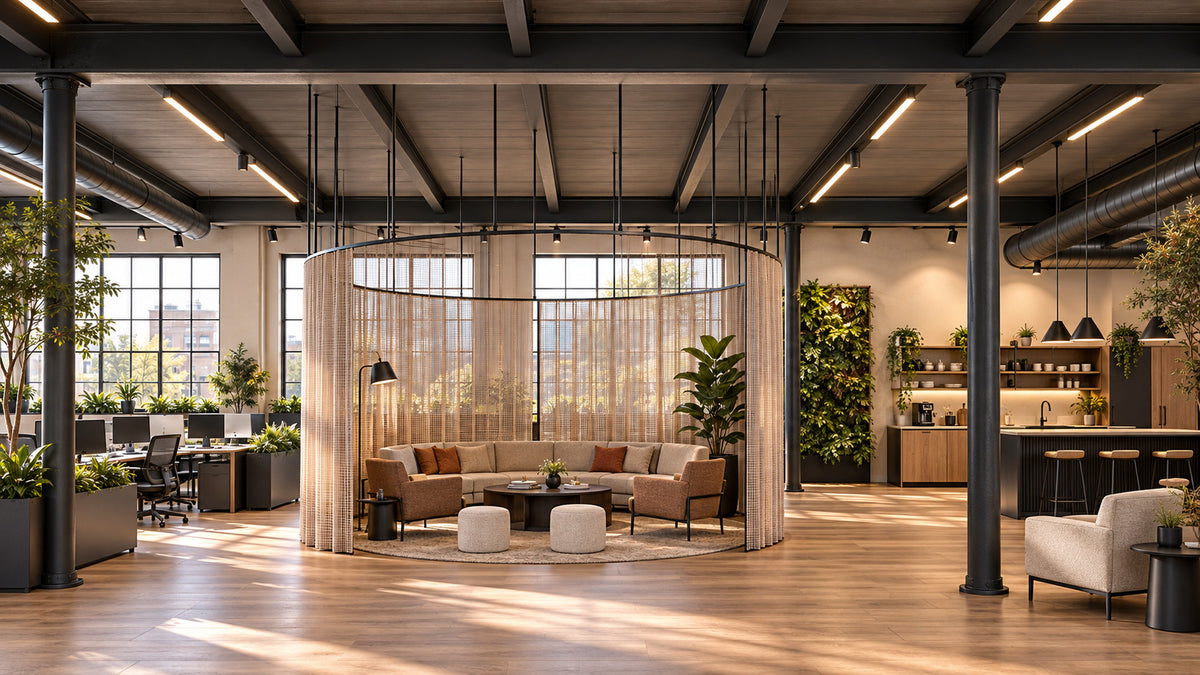

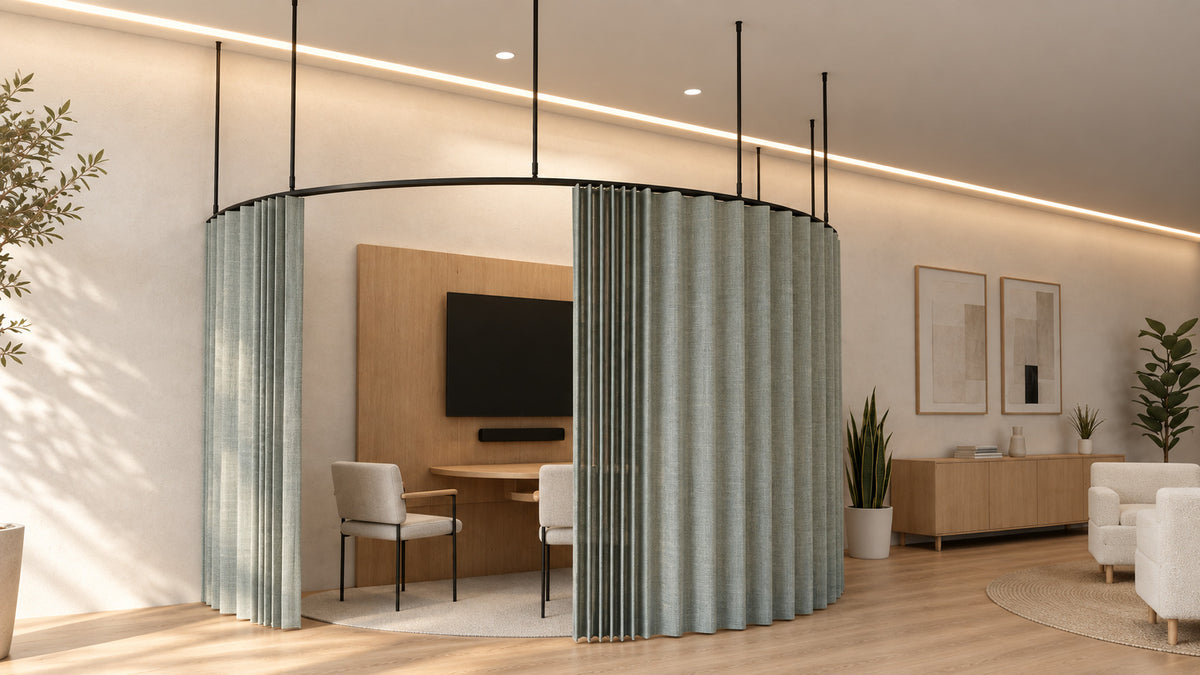

From a single straight run to a full circle and a free-standing pod. Every kit is a 28 mm round aluminium wave curtain track in white or black, hand drawn on 80 mm gliders, and either suspended on drop tubes or fixed straight to the ceiling.

Prices are per kit, supply only and ex VAT, for the smallest size top-fixed. Every kit is sold as track on its own; a made-to-measure wave curtain can be added.

What it makes

Space that can change its mind

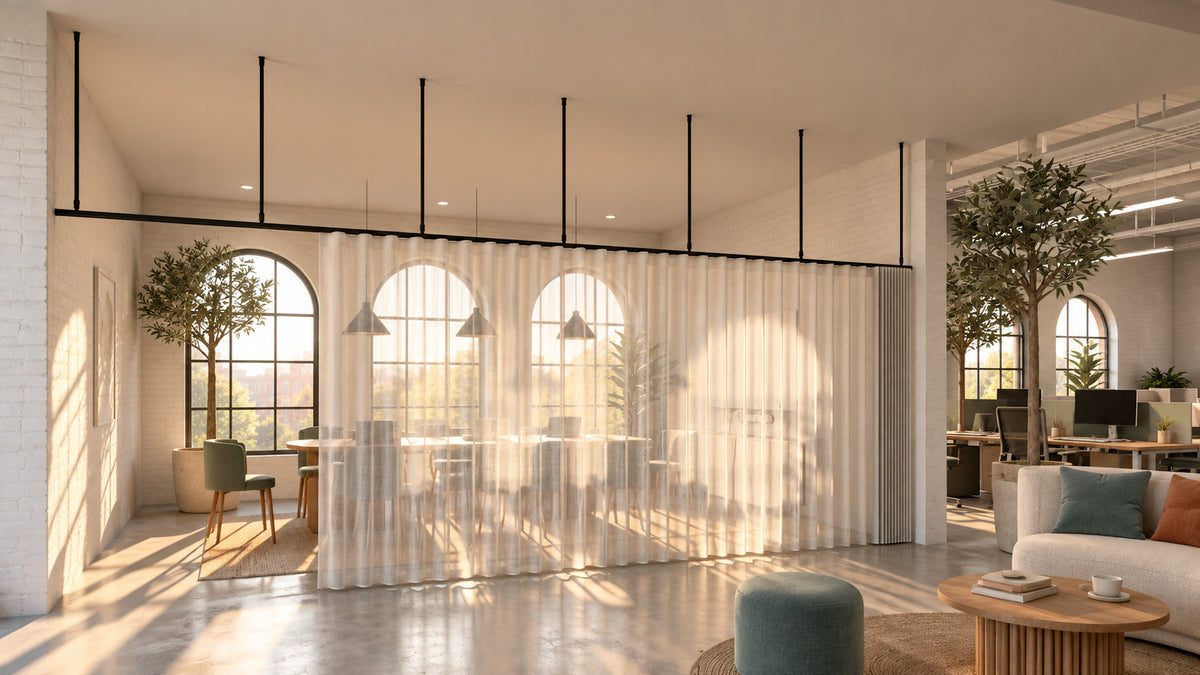

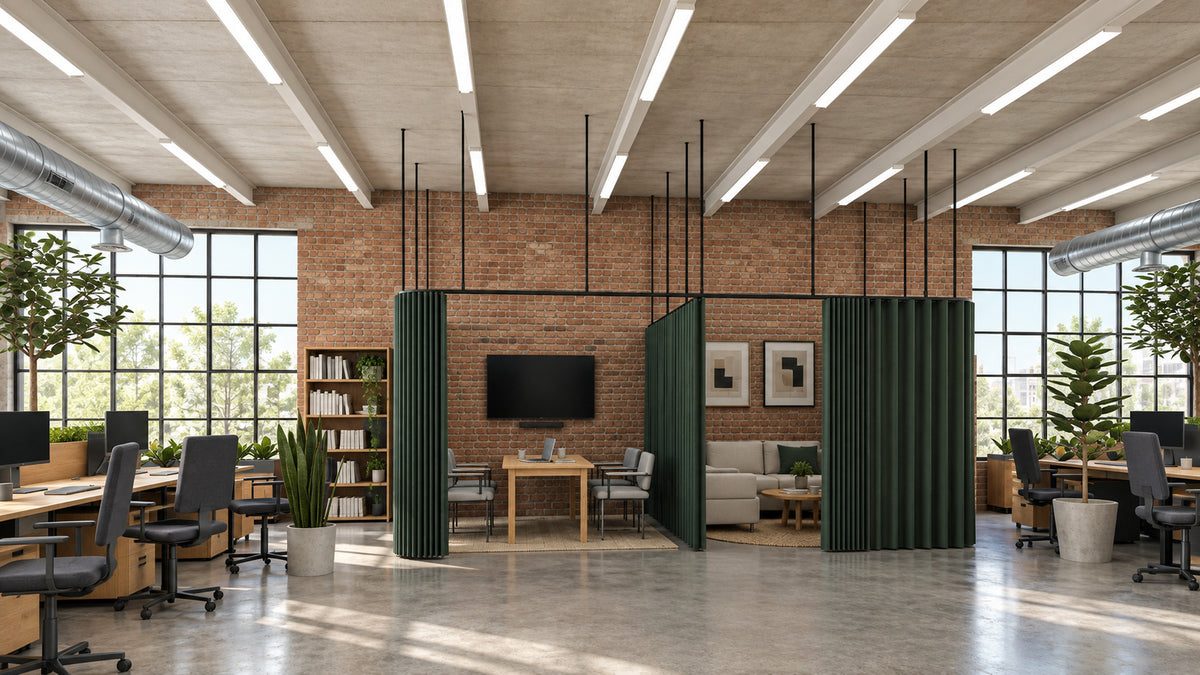

A partition decides once. A curtain on a formed track makes a meeting room, a booth or a quiet corner when it is needed, and gives the floor back when it is not.

How it arrives

A kit, not a parts list

Buying track as loose components means working out bends, joiners, gliders and fixings yourself, then hoping it all turns up together. A Zone kit is one line on the order and one delivery.

  1. Cut

    Every length is cut to the size you ordered. Nothing to trim on site, no offcuts to lose.

  2. Formed

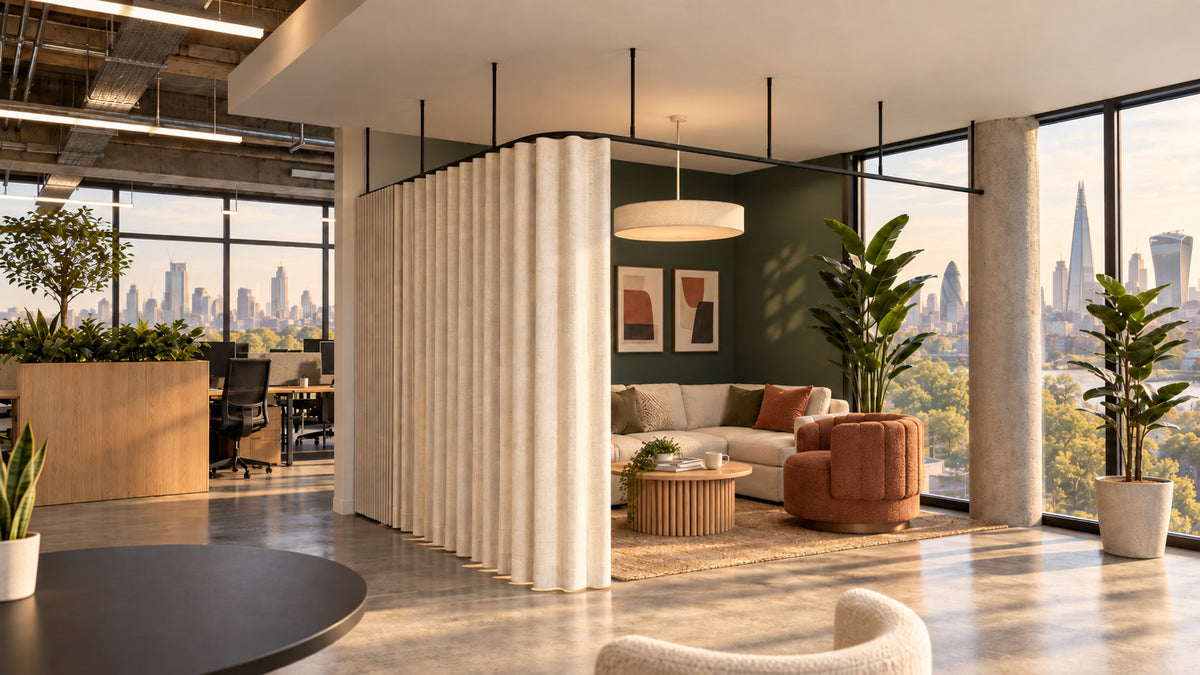

    Corners are formed at a 300 mm radius and curves at 1700 or 2200 mm, so the curtain runs round without snagging.

  3. Strung

    80 mm wave gliders are strung and fitted to the track before it leaves, with end stops and caps in place.

  4. Boxed

    One set, one box, with a fitting sheet that marks every fixing position. The fitter opens it and starts.

Fixing

Two ways to put it up

Choose the fixing when you order. The kit arrives with the right supports for it and nothing you do not need.

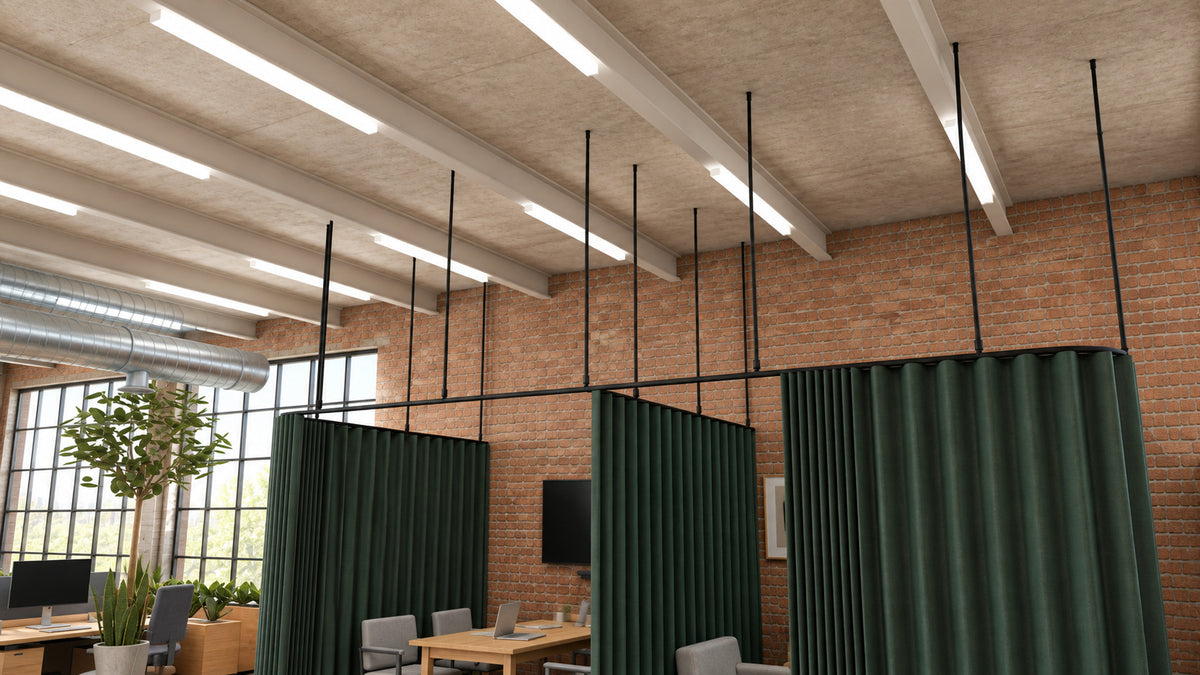

Suspended

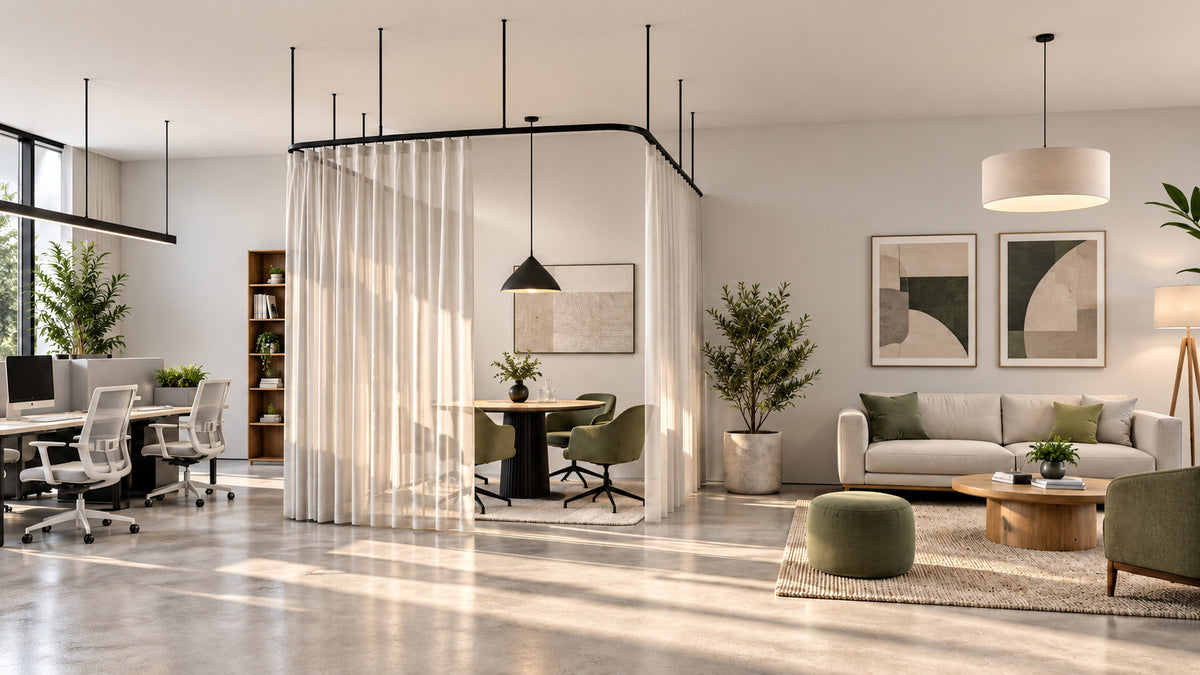

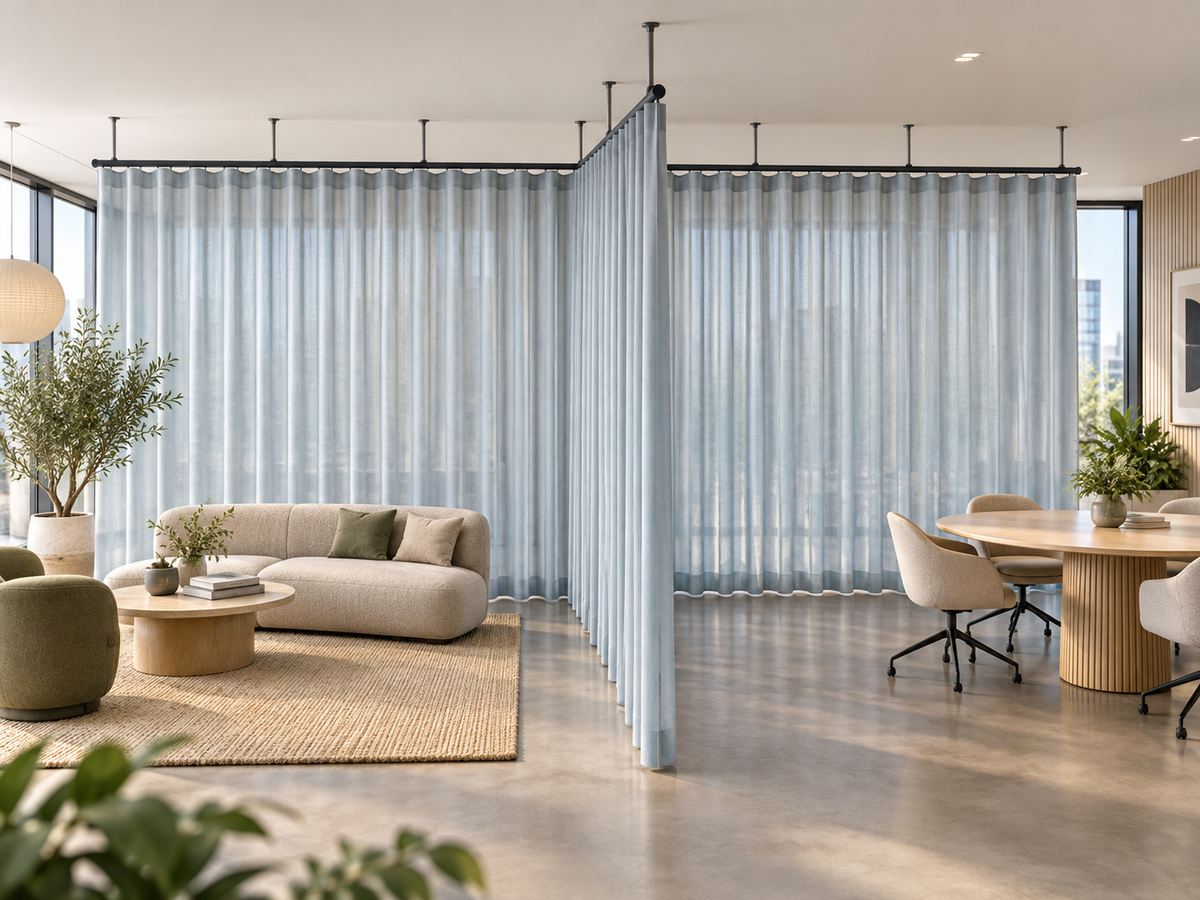

Hung on 16 mm drop tubes from the structure above. The answer for grid ceilings, exposed services and tall spaces where the track needs to sit below the soffit.

One drop tube per metre of track, plus one. Drop cut to order, up to 2000 mm.

Top fix

Bracketed straight to a solid ceiling. The cleanest line and the quickest install where there is plasterboard, timber or concrete to fix into.

Ceiling brackets at 500 mm centres maximum, positions marked on the fitting sheet.

For specifiers

Everything the schedule needs

The same track, the same gliders and the same two fixings on every kit, so one specification covers the whole range. Each product page builds the clause for the exact size, colour and fixing you choose.

System
Zone by CreateFR: pre-configured room divider curtain track kits, cut and formed to order
Profile
Zone 28: 28 mm round aluminium track with a 6 mm glider channel
Finish
Powder-coated white or black, the same price in either
Operation
Hand-drawn, uncorded
Gliders
Wave gliders strung at 80 mm pitch and fitted to the track before dispatch
Corners and curves
90° corners formed at 300 mm radius. Curves formed at 1700 or 2200 mm radius. Pod ends formed at 600 or 900 mm radius
Suspended fixing
16 mm drop tubes with ceiling and track connectors, one per metre of track plus one. Drop cut to order, up to 2000 mm
Top fixing
Ceiling brackets at 500 mm centres maximum, with one at each end, to a solid ceiling or timber pattress
Curtains
Wave heading at 80 mm, made to measure to your finished drop by CreateFR in inherently fire retardant fabrics certified to BS 5867 Part 2
Supply
Supply only. Each kit is sold as track on its own, or with a made-to-measure wave curtain
Drawings
A dimensioned plan and full kit schedule for every size. DWG on request
Lead time
5–10 working days, made to order
Guarantee
5 years

Specification clause

Swap the bracketed parts for your shape, finish and fixing, or copy the finished clause from any Zone product page.

Dividing curtain track: Zone by CreateFR, [Zone L 2600 × 1800 mm].
Track: Zone 28, 28 mm round aluminium, powder-coated [white / black], hand-drawn, uncorded, with wave gliders strung at 80 mm pitch. Corners formed at 300 mm radius.
Fixing: [suspended on 16 mm drop tubes, drop from ceiling ___ mm] / [top-fixed on ceiling brackets at 500 mm centres maximum].
Curtain: wave heading at 80 mm, finished drop ___ mm, in an inherently fire retardant fabric certified to BS 5867 Part 2, made to measure by the track supplier.
Supplier: CreateFR, createfr.co.uk.

Drawings

One sheet per shape: a dimensioned plan for each size, with the kit schedule beside it. No prices on them, so they can go straight into a tender pack.

Download the shape sheets (PDF)Request DWG or other drawings

Curtains to suit

BS 5867 PART 2

The curtain is the part you have to evidence

A track divides nothing until there is a curtain on it. Whether it is an office room divider, a classroom screen or a curtain partition in a care setting, that curtain has to be certified. We make FR curtains to fit every Zone kit, so track and curtain come from one supplier with one set of paperwork.

Browse FR fabrics
  • Inherently fire retardant fabrics only. The performance is in the yarn, so it does not wash out.
  • Wave heading made to the 80 mm gliders already on your track, so the folds sit evenly the day it goes up.
  • Made to measure in the UK to your finished drop, by the same workroom that makes every CreateFR curtain.
  • A sheer gives visual privacy and keeps the daylight. Where speech privacy matters, ask for a heavier or acoustic fabric.

What a curtain adds

A guide price for one wave curtain on each kit, so track and curtain can be budgeted together before anyone asks for a quote.

Guide prices, supply only and ex VAT, for one unlined wave curtain the full length of the track in a sheer FR fabric from our standard range, made to measure to a finished drop of up to 2300 mm. Taller drops, linings and other fabrics are quoted. The track is priced separately on each kit's page. Request a curtain quote

Zone Bespoke

When the room is not an L

The standard shapes cover most rooms. For the rest, send us the plan. We draw it, quote it and box it as one set, exactly like a standard kit.

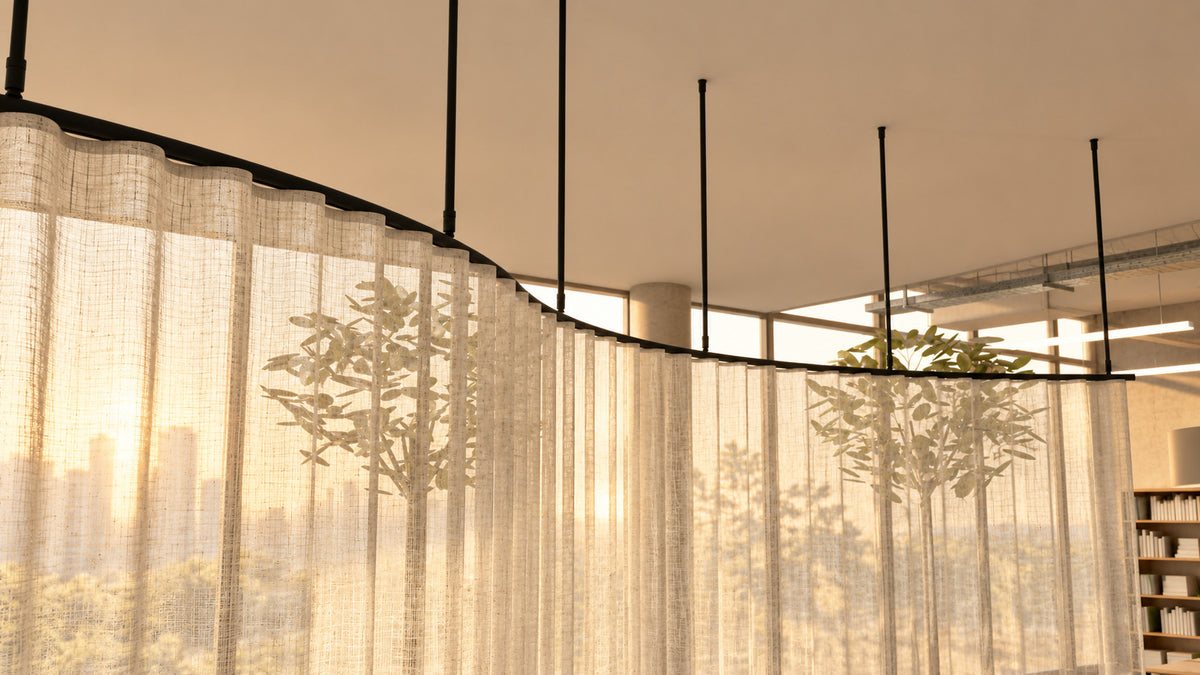

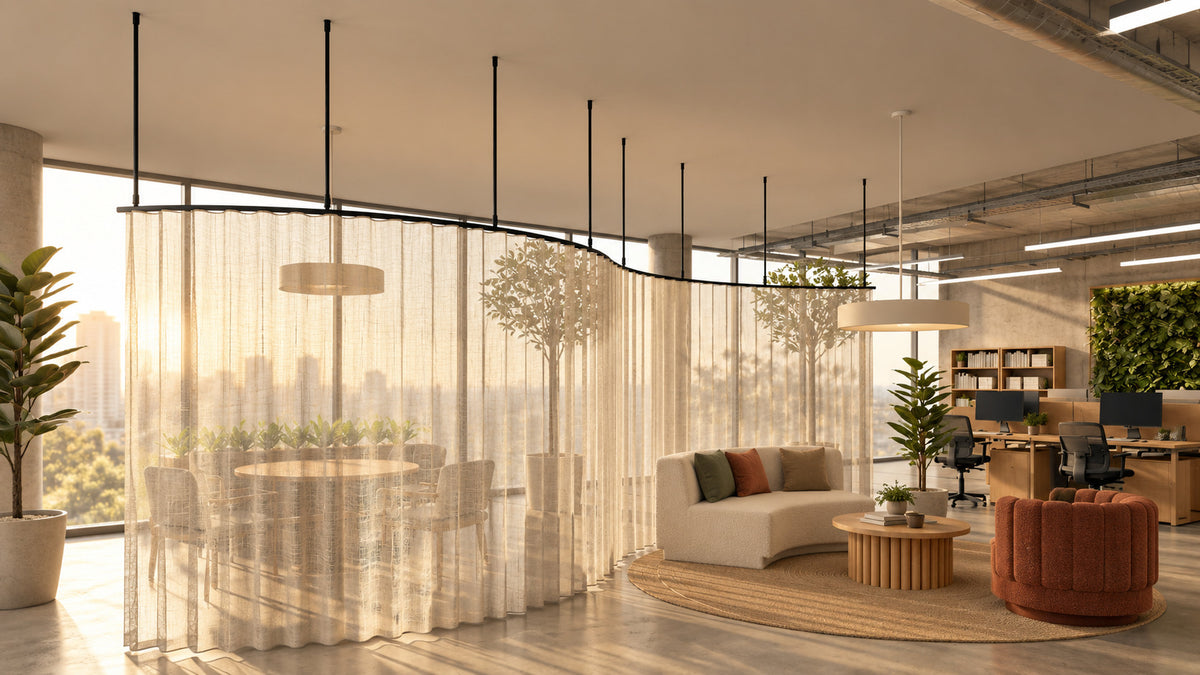

A free-standing S

Two curves joined back to back, hung on drop tubes with both ends free. It is not one of the standard kits, so it is drawn, quoted and boxed to your plan in the same way as any other Zone Bespoke shape.

Ask for this shape →

  • A standard shape, your size

    An L that needs to be 3100 by 2250, a straight run cut to the bay. Same kit, same box, made to the dimensions on your plan.

  • A screened corner with a curved end

    A straight run that sweeps round on a 1700 mm radius, so the curtain closes a corner without a hard return. About 6.9 m of track in one set.

  • A stepped run round a column

    Two formed corners take the track sideways past a column or a downstand and carry on. The curtain runs through without a break.

To draw and quote it, we need

  1. Dimensions on plan
  2. Ceiling type
  3. Ceiling height and drop
  4. Where it opens and stacks
  5. White or black
  6. Track only, or track and curtain

You get a dimensioned drawing to approve before anything is cut. A phone sketch with measurements is enough to start.

Start a bespoke enquiry

For the specifier

Drawings you can forward

A dimensioned plan for every size with the full kit schedule beside it. Drop it into the spec or send it to whoever signs off.

Download the shape sheets (PDF) Request other drawings

For the contractor

Ordering ten or more?

A ward refurb, a floor of meeting pods, a rollout across sites. Tell us the shapes and the quantity and we will price the project as a project.
